Debug UI

a2akit ships with a built-in browser-based debug interface for testing and inspecting your A2A agents during development. Think of it as FastAPI's /docs, but for A2A agents.

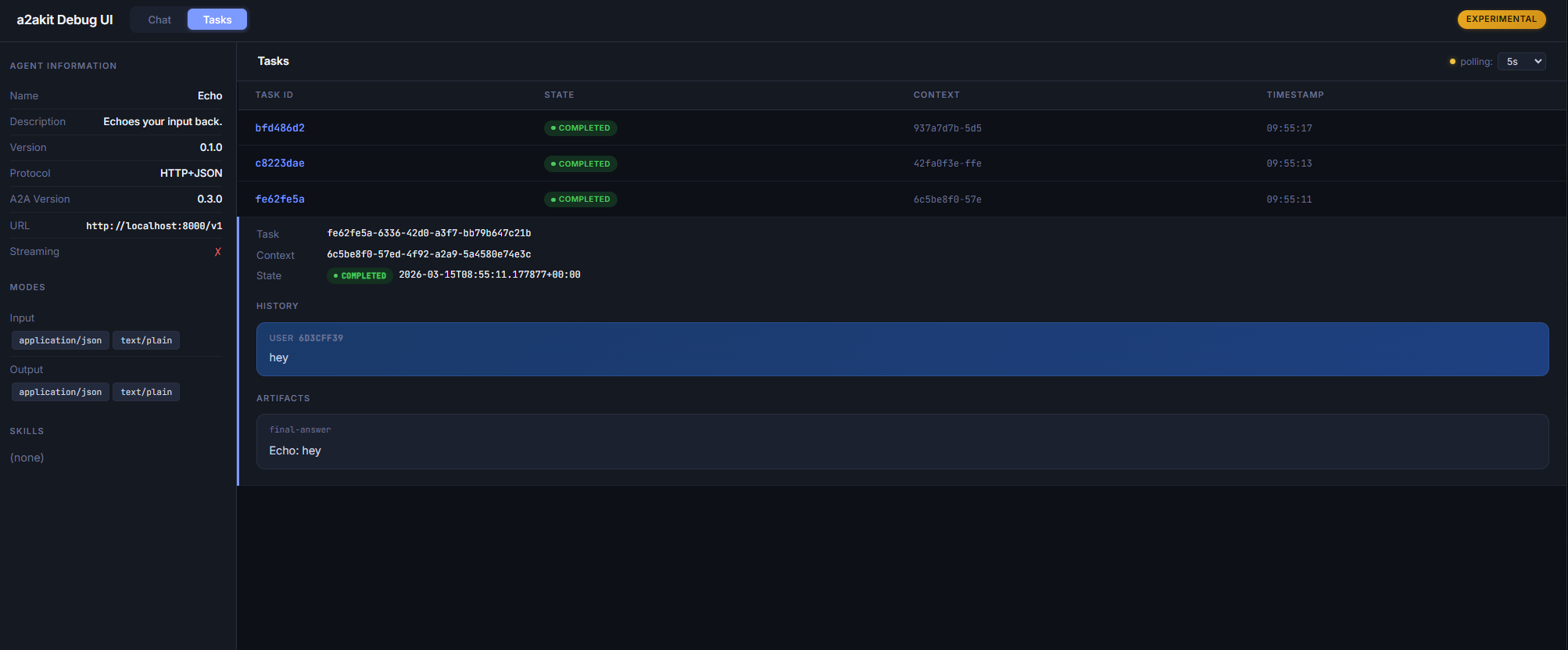

Debug UI — Task Dashboard

Activation

Pass debug=True when creating the FastAPI app:

from a2akit import A2AServer, AgentCardConfig, TaskContext, Worker


class EchoWorker(Worker):
    async def handle(self, ctx: TaskContext) -> None:
        await ctx.complete(f"Echo: {ctx.user_text}")


server = A2AServer(
    worker=EchoWorker(),
    agent_card=AgentCardConfig(
        name="Echo",
        description="Echoes your input back.",
        version="0.1.0",
        protocol="http+json",
    ),
)
app = server.as_fastapi_app(debug=True)

uvicorn my_agent:app --reload

Then open http://localhost:8000/chat in your browser.

When debug=False (the default), the /chat route is not mounted and there is zero overhead.

Chat View

The Chat view lets you send messages to your agent and see responses in real time.

  • Each message creates a new task with a fresh messageId.
  • When the agent responds with input-required or auth-required, the UI automatically continues the same task on the next message.
  • Once a terminal state is reached (completed, failed, canceled, rejected), the next message starts a fresh task.
  • Streaming agents show artifact chunks live as they arrive via SSE.
  • Non-streaming agents send with configuration.blocking: true and show a loading indicator.
  • Every agent response displays a state badge (completed, failed, etc.).
  • Click New Conversation to clear chat history and stored task/context IDs.

Task Dashboard

The Tasks view shows all tasks in the system with live polling.

  • Task list — sorted by timestamp (newest first), each row shows Task ID, state badge, context ID, and timestamp.
  • Configurable polling — use the dropdown in the top-right to set the polling interval (0.5s, 1s, 2s, 5s, 10s, or 30s). You can also set the initial interval via query parameter: /chat?poll=5 for 5-second polling.
  • Task detail — click any row to expand and see:
    • Full Task ID and Context ID
    • Current state with timestamp
    • Status message
    • State transition timeline — vertical timeline showing every state change with badge, timestamp, and optional message text (requires state_transition_history capability or always present in metadata)
    • Complete message history (user + agent messages)
    • All artifacts with text and formatted JSON
    • Metadata (excluding internal _-prefixed keys and stateTransitions)
  • Polling updates task states in-place without flickering (React virtual DOM).

Protocol Support

The Debug UI works with both A2A transports transparently:

HTTP+JSON JSON-RPC
Chat — send POST /v1/message:send POST / method message/send
Chat — stream POST /v1/message:stream POST / method message/sendStream
Tasks — list GET /v1/tasks POST / method tasks/list
Tasks — detail GET /v1/tasks/{id} POST / method tasks/get

The protocol is auto-detected from the agent card's preferredTransport field.

Agent Info Sidebar

The left sidebar (visible in both views) displays agent metadata read from /.well-known/agent-card.json:

  • Name, description, version
  • Protocol (JSON-RPC or HTTP+JSON)
  • A2A protocol version
  • Agent URL
  • Streaming capability (checkmark or cross)
  • State History capability (checkmark or cross)
  • Input/output modes
  • Registered skills

Technical Details

  • The UI is a single self-contained HTML file (~220 KB) with all CSS and JS inlined.
  • Built with React + Vite, bundled via vite-plugin-singlefile. No external JS dependencies at runtime.
  • The HTML is stored as a Python string constant in _chat_ui.py and served via HTMLResponse.
  • The route is registered with include_in_schema=False so it does not appear in the OpenAPI spec.
  • The package version is injected at serve time via CHAT_HTML.replace("{{VERSION}}", ...).

Rebuilding the UI

If you modify the UI source code in the ui/ directory:

cd ui
npm install
npm run build    # Vite build → dist/index.html
npm run embed    # Writes dist/index.html into src/a2akit/_chat_ui.py

Scope

The Debug UI is a development tool, not a production feature:

  • No persistent state (refreshing the page resets the chat; the dashboard re-fetches from the server)
  • No file upload, no auth flows, no cancel button
  • No markdown rendering (plain text only, JSON displayed in <pre> blocks)
  • No mobile-optimized layout
  • No WebSocket (SSE + polling only)
